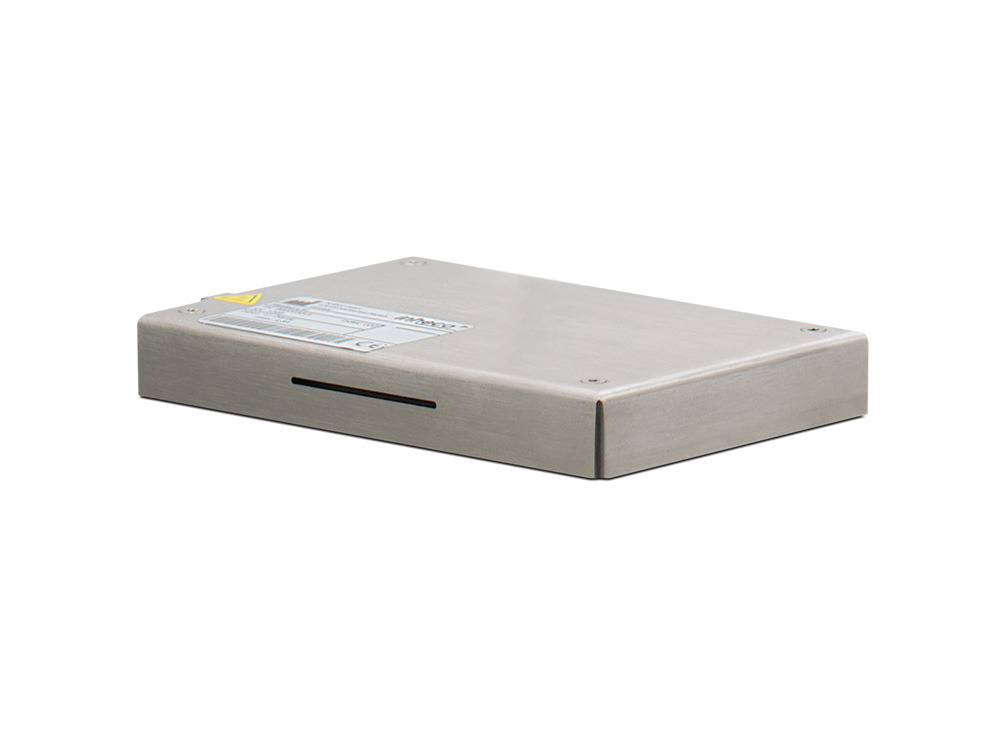

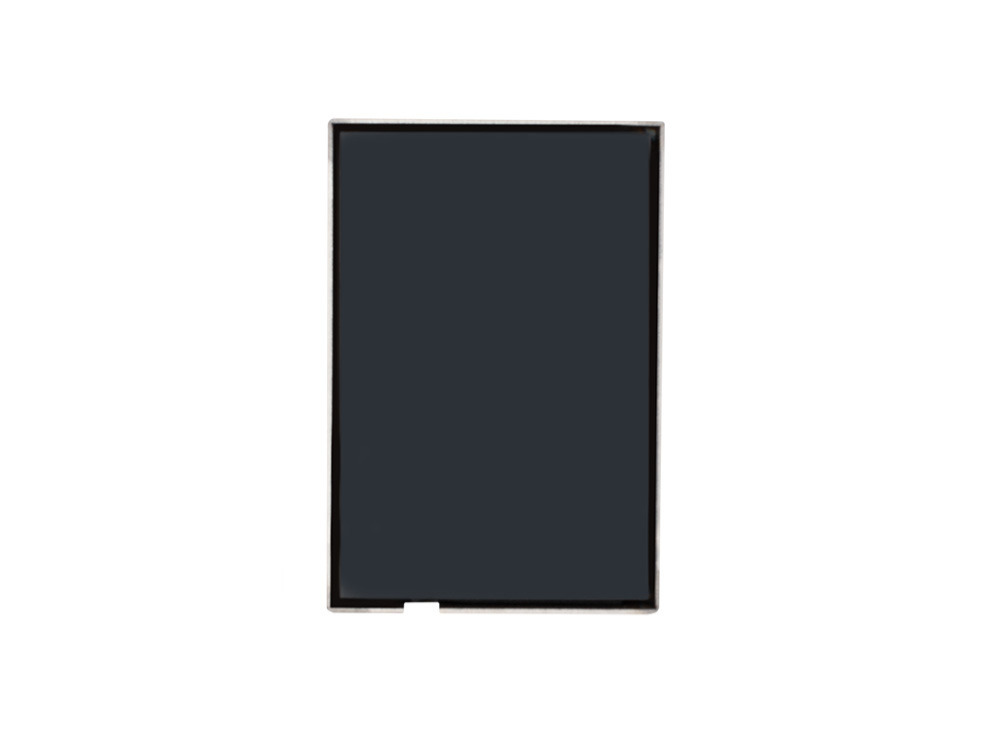

Inheco Heated Lid

Improved Heating performance and protection for your samples

Increase heating performance & temperature uniformity with the Inheco Heated Lid. The Lid can be used as an add-on heater on top of the Thermoshake, CPAC, CPLC and HeatPAC. Use it to increase the rate of heating, improve temperature uniformity (especially for deep well plates), and enable longer incubation.

SPACE-SAVING
The Heated Lid helps to avoid condensation at the top of the plate, and reduce losses due to evaporation, without needing the space (or cost) of a dedicated incubator.

PROTECTIVE
Keep your samples protected during fully automated processing, 24/7, without supervision. The Heated Lid has a flexible cable and low weight (420 g) so it can be transported by most gripper systems, while being heavy enough to seal the plate and prevent contamination.

RELIABLE AND SUPPORTED
Every Inheco accessory is designed, engineered and made in Germany and undergoes rigorous quality control before delivery. It comes with a global two-year warranty and full customer service including remote support, diagnostic and servicing options that focusses on minimizing operational downtime.

Get a Quote





Inheco

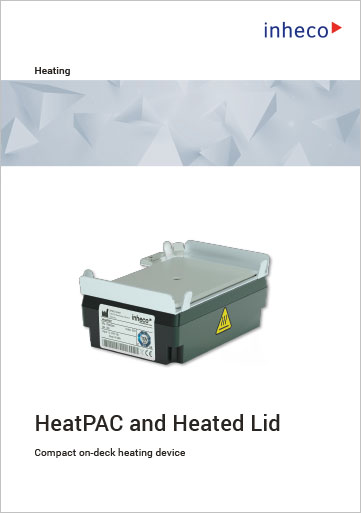

Heated Lid Brochure (PDF)
Inheco

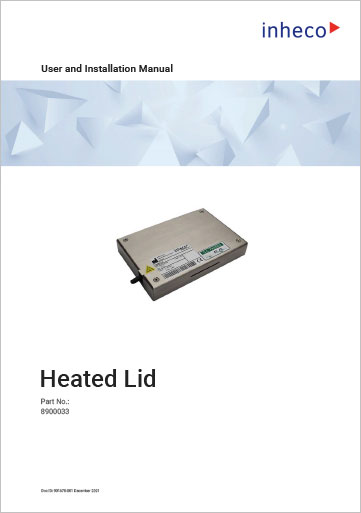

Heated Lid Manual (PDF)
Inheco

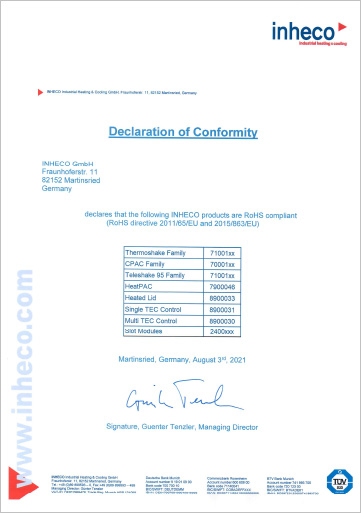

Heated Lid EC Declaration (PDF)
Inheco
Heated Lid UL Certificate (PDF)
Inheco
Production Facility Inspection (PDF)

Technical Specifications Heated Lid

Technical data incl. dimensions
Input voltage / max. current 24 Vdc / 4.8 A
Temperature range Ambient to +115 °C [ambient to +239 °F]
Temperature range ambient 15 °C to +32 °C [+59 °F to 89.6 °F]
Sensor type Two PT100
Outer dimensions (H x W x L) 19 mm x 91 mm x 134 mm
Weight incl. cord Approx. 0.55 kg [1.2 lbs]
Heating capacity 100 Watt

Environmental conditions
Tolerable relative humidity:
Operation 30-80% relative
Transportation and storage 10-80% relative
Temperature:
Operation +15 °C to +32 °C [+59 °F to 90 °F]
Transportation and storage -10 °C to + 60 °C [+14 °F to 140 °F]
